Simulated WiFi Band Steering

Overview

In this post, I'll demonstrate how to simulate WiFi band steering without any physical WiFi radios. We'll use open source Linux tools that are used in commercial WiFi products and hopefully learn a thing or two on the way!

If you'd like to replicate this yourself, you'll need a Linux system with sudo access, kernel support for the mac80211_hwsim driver (which is generally the case for most Linux distributions), and hostapd and wpa_supplicant installed. These tools will permit complete WiFi simulation in software. However, the same setup will also work with real WiFi radios. This can also be run within a container or virtual machine.

This setup assumes some experience using Linux, Wireshark, and WiFi. There are plenty of great resources out there. I maintain a reference of common Linux commands here. Additionally, if you'd like to (responsibly) do real WiFi packet capture with Wireshark, I wrote a guide which is available here.

Background

Before we dive in, I'd like to first cover some background WiFi information, especially as it relates to band steering. If you're familiar already, skip to the next section.

In WiFi, clients select and connect to the WiFi access point (AP) BSSID they want. Each client operates slightly differently, but metrics like channel utilization and estimated throughput strongly influence this decision. As a client operates and possibly moves around in its environment, conditions will change. The client may decide to shift to another channel on the same AP (different BSSID), it may roam to another AP, or it may do something else entirely! These decisions are ultimately left up to the client, not the AP.

Given this, an AP is left with limited options to influence the client decisions. An AP can reject the client's authentication/association request or send a deauthentication frame or disassociation frame. However, these methods are heavy handed and may result in poor user experience.

Several amendments to the WiFi 802.11 standard serve to address this and to improve user experience generally. Amendments 802.11k (neighbor reports), 802.11r (fast transition), and 802.11v (BSS transition management) are a couple widely known examples. For the purposes of this post, we'll focus on 802.11k and 802.11v, which introduce neighbor reports and BSS transition management (BTM), respectively. Both are essential for band steering, whether it be simulated or real-world. Note that enabling band steering is somewhat controversial in the WiFi world, I take no side here!

If you'd like to brush up on band steering or the amendments I mentioned, check out my colleague Isaac Konikoff's talk on band steering fails here and this Cisco 802.11v explainer available here. For more in-depth coverage, check out my colleague Sitarama Penumetsa's lecture here from his WiFi fundamentals course.

With this all in mind, we're ready to setup for testing!

Test Setup

In order to simulate band steering, we must first configure our test environment. While this same configuration is possible with real radios, we'll instead use the mac80211_hwsim Linux driver to simulate this testing entirely in software, hopefully making it more accessible.

Recommendations

To make your life easier, I recommend the following:

Setup Instructions

NOTE: Many commands in this post will require root permissions (e.g. run with sudo), including hostapd, wpa_supplicant, modprobe.

  1. Load the mac80211_hwsim kernel module (driver)

    # Three simulated radios are needed
#  1. Client (STA)
#  2. AP 2.4 GHz BSSID
#  3. AP 5 GHz BSSID
modprobe mac80211_hwsim radios=3 support_p2p_device=0

  2. Identify simulated WiFi interfaces and their MAC addresses

    # Show interface link-layer information and names ('-br' forces terse output)
ip -br link show

    Most likely the mac80211_hwsim interfaces will be named wlan0, wlan1, and wlan2. The driver will additionally create another interface named hwsim0, which permits packet capture of simulated WiFi traffic.

    To know for sure, first check the MAC address. The driver creates the interfaces using the format 02:00:00:00:XX:00, where the XX matches the simulated radio number.

    If you're encountering issues or want to know more, check out this section.

  3. Configure your network daemon to ignore the interfaces

    Practically all modern workstation Linux distributions ship with NetworkManager. If you're using something else, I assume you know what you're doing or can figure it out...

    When using NetworkManager, we must configure it to ignore the new mac80211_hwsim interfaces, which you can do with the following command.

    # Run this for each simulated WiFi interface, substituting in
# your system's interface names for this and subsequent commands
nmcli device set wlan0 managed false

    When complete, the interfaces should show as unmanaged in the output of nmcli device status (or nmcli device for short), as shown below. You may still see some unexpected traffic (e.g. ARP, ICMPv6, DHCP) and the interfaces may even autoconfigure with a link-local IPv4 address. However, we configured NetworkManager to not control the WiFi interfaces, which will allow us to run our test.

  4. Download example hostapd and wpa_supplicant configs from here

    I recommend using the open (no security) configuration, as this will make packet capture much more simple. With configurations supporting encryption, packet decryption is possible, but security improvements like 802.11w and WPA3 make this increasingly difficult (which is good for security!).

    git clone https://codeberg.org/a-gavin/hostap-confs.git

  5. Start the AP interfaces

    # Options used are:
#  -t:  Print timestamps
#  -i:  Specify interface to run AP with. Can be specified multiple times.
#
# For verbose or very verbose logging, add the '-d' or '-dd' options
hostapd -t -i wlan0 -i wlan1 hostapd_2.4GHz-open.conf hostapd_5GHz-open.conf

    Assuming no errors appear in the logs, you can verify the AP interface channel/frequency, SSID, and MAC with the iw wlan0 info command.

  6. Enable mac80211_hwsim packet capture interface

    This interface is likely named hwsim0.

    ip link set up dev hwsim0

  7. Run Wireshark using the mac80211_hwsim packet capture interface

    Packet capture requires root permissions. See the Wireshark documentation here for more information on how to enable this.

  8. Start the client interface

    # Similar options and requirements as 'hostapd'
# The '-c' option required to specify the config file
wpa_supplicant -t -i wlan2 -c supplicant_open.conf

  9. Wait for client to connect

    As the client connects, you should start to see the simulated WiFi traffic in Wireshark. The simulated client will connect through the normal WiFi client connection process. Connection is complete once the AP responds with a successful association response frame. I recommend using the wlan.fc.type_subtype != 8 filter to not display beacons.

    Once the client connects, you should also see the message CTRL-EVENT-CONNECTED in the station logs and AP-STA-CONNECTED in the AP logs. Take note of the AP interface that the client connected to. As with the AP interfaces, you can run the iw wlan2 info command to verify connection, channel, SSID, BSSID, etc.

  10. Connect to the hostapd CLI interface

    In another terminal, run the following command. This will enter a the hostapd CLI interface which may or may not permit line editing and/or command history, depending on your system.

    # Example configs here use default control interface directory.
# If you use something else specify it using the '-p' option
hostapd_cli

  11. Select the AP interface to which the client connected

    Using the interface command, select the desired interface. Then, check the list of connected clients with the list_sta command, as shown below.

    $ hostapd_cli -p /var/run/hostapd/
...
> interface wlan0
> list_sta           <---- No clients associated, check the other AP interface
> interface wlan1
> list_sta
02:00:00:00:02:00

With the simulated client connected, Wireshark running, and the hostapd CLI up, we're ready to run some tests!

Simulated Band Steering Test

Test Overview and Goals

For this test, we'll attempt to band steer the client from its currently associated BSSID to the AP's other BSSID. This test aims to simulate a client receiving a transition request from an AP, which is often seen in real world scenarios, for example a client as it walks away from the AP.

A successful test here should result in the client disconnecting from the initial BSSID and then reconnecting to the other BSSID. This should occur after the client receives a BTM request from the initial AP. The request should include the other BSSID as a preferred neighbor candidate, which should trigger client reconnection to the other BSSID. All of this should be visible in the Wireshark capture we started earlier.

Test Instructions

Using the hostapd CLI interface we configured earlier, we'll use the bss_tm_req command to trigger the client steer. This command instructs the specified AP to transmit a BTM request frame to the client, hopefully resulting in a successful band steer.

With the suggested example configs, the client should respond and steer successfully, assuming the command used is correct. It's possible to simulate a client which doesn't support BTM requests by setting the disable_btm=1 config option (outside the network block) and reconnecting, but that's left as an exercise to the reader.

The following commands will generate BTM requests to steer the client from one BSSID to the other and vice versa. Adjust as needed. More information on this command can be found in this section.

# From 5 GHz to 2.4 GHz
# First MAC is client MAC. Second MAC (neighbor) is 2.4 GHz BSSID.
bss_tm_req 02:00:00:00:02:00 pref=1 neighbor=02:00:00:00:00:00,0x0000008f,81,1,14

# From 2.4 GHz to 5 GHz
# First MAC is client MAC. Second MAC (neighbor) is 5 GHz BSSID.
# Unlike the 5 GHz to 2.4 GHz config above, the client may take a bit to scan.
bss_tm_req 02:00:00:00:02:00 pref=1 neighbor=02:00:00:00:01:00,0x0000008f,81,36,14

Assuming the command ran successfully, you should see 'OK' in the CLI and a successful BTM request and response exchange in Wireshark as shown below.

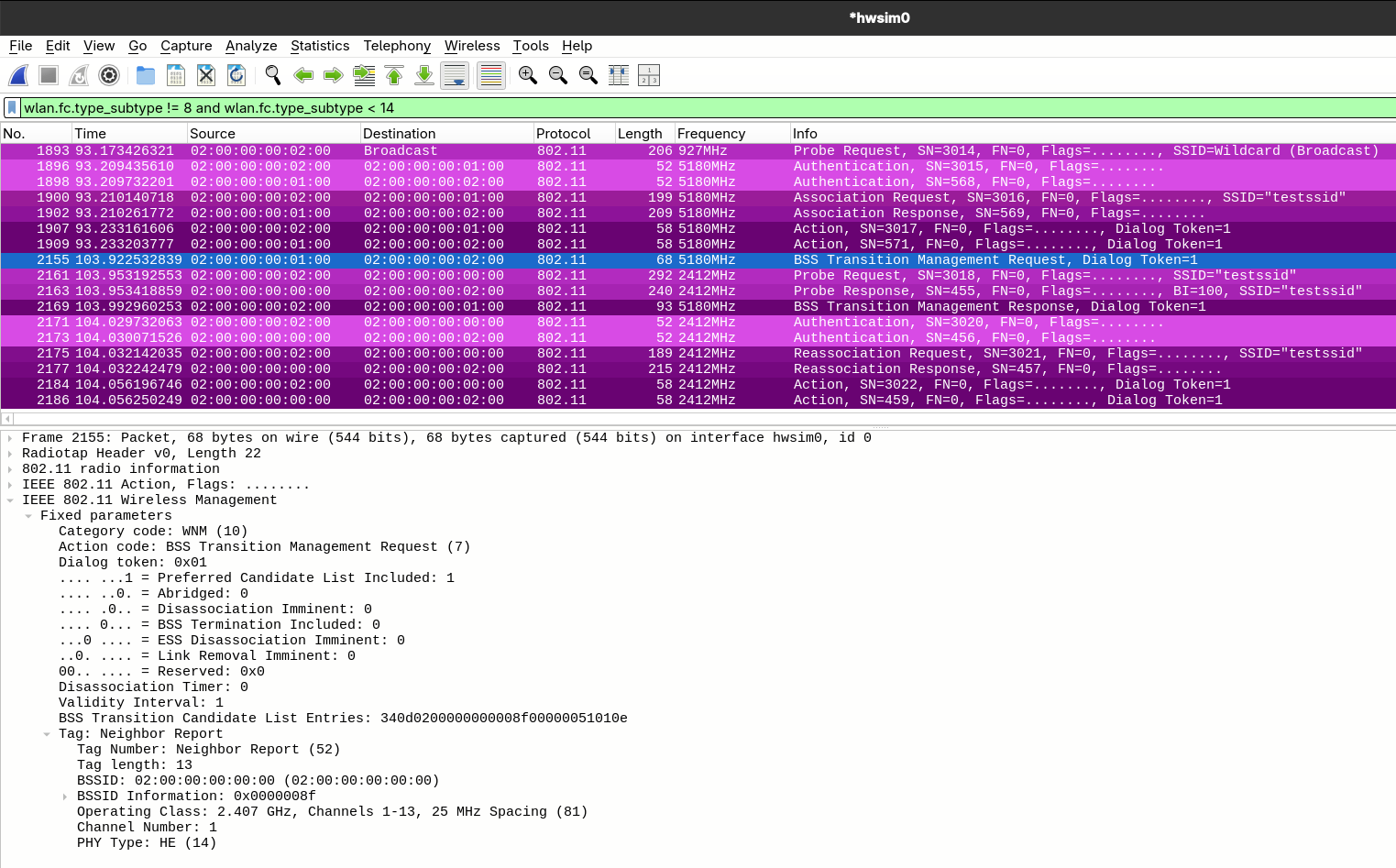

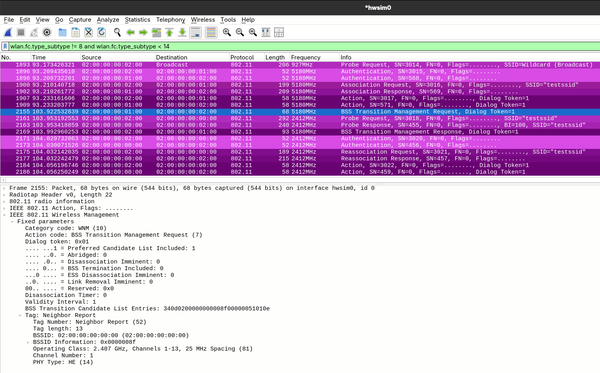

BTM Request to downsteer from 5 GHz to 2.4 GHz BSSID
BTM Request to downsteer from 5 GHz to 2.4 GHz BSSID

In the case that the command failed to parse, you'll see a 'FAIL' in the CLI. However, if the command succeeded but the client did not steer, there are other issues present.

The following image shows another BTM request exchange. Here the client rejects the AP's request with status code 7, no suitable candidates. If you see similar, possibly you misconfigured the neighbor BSSID, or the client was unable to scan the neighbor.

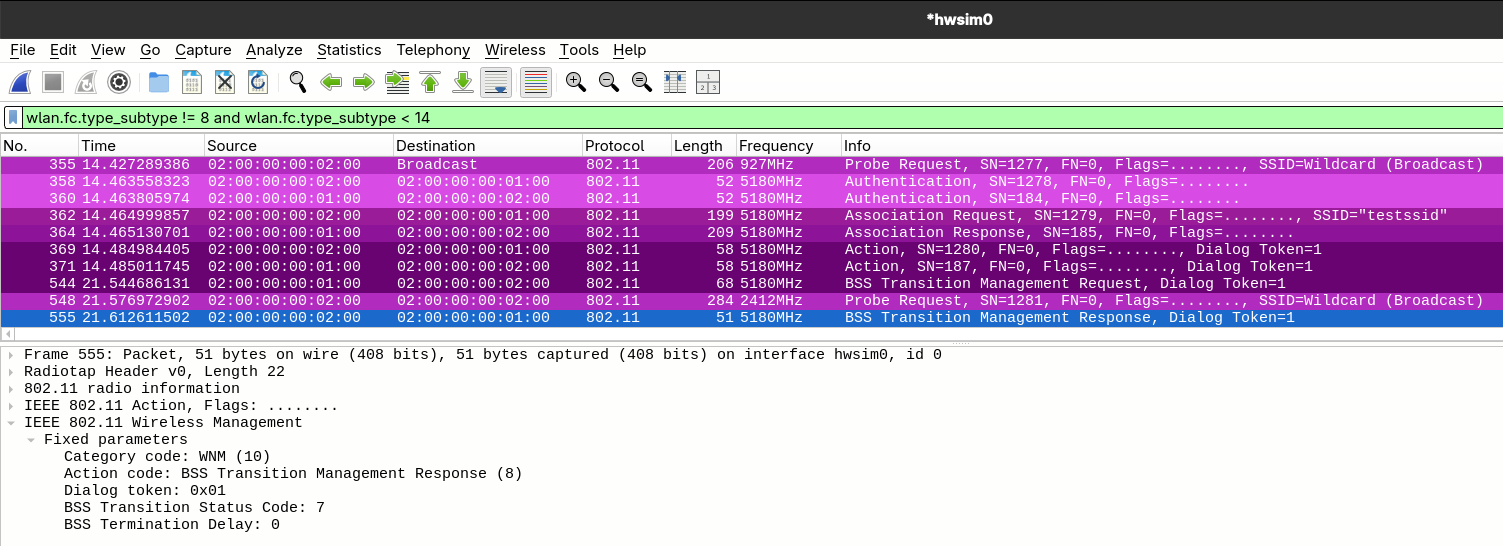

BTM Request rejected, no suitable candidates
BTM Request rejected, no suitable candidates

Closing Thoughts

In this post, we detailed how to run a simple band steering test using a single client and two AP BSSIDs triggered by the AP. This test was simulated entirely in software using the mac80211_hwsim virtual WiFi driver along with standard Linux WiFi tooling.

Similar testing using the client as the trigger is also possible (using the wpa_cli wnm_bss_query command). However, upstream hostapd does not support BTM query responses that will trigger band steering (does not include preferred neighbor report). For that, your best bet will be to test with real APs. Have fun!

Addendum

Identifying Interfaces and MACs Cont

In the case that interface names and MAC addresses are non-default or difficult to identify, there may be several things getting in the way. This section covers a couple reasons why this may be.

The most likely culprit is your networking daemon. If you're using Network Manager, it's possible your system configuration may randomize MAC addresses, which will happen before you can instruct Network Manager to ignore them. I run NixOS nowadays and that's exactly what it did for me.

As mentioned in the setup instructions above, the mac80211_hwsim driver will create the simulated radios and WiFi interfaces with MAC addresses matching the pattern 02:00:00:00:XX:00. Assuming the driver loaded properly, if you don't see this in the output of ip -br link show, then networking daemon MAC randomization is almost certainly the cause.

Another possible source of issues could be systemd-udev. On modern Linux distributions which use systemd, predictable network interface naming is enabled by default (see here for more info). However, either udev '.rules' files in /etc/udev/rules.d/ or systemd '.link' files in /etc/systemd/network/ (which are used even when running Network Manager) could rename the network interfaces. Unless you've been adjusting this in your system already, your issue is almost certainly the networking daemon.

bss_tm_req Command Format

In general, hostapd and wpa_supplicant CLI commands are straightforward but not well documented. In the hostapd CLI, you can run the help to display more information on the desired command (e.g. help status). However, often times the output is terse, and I find myself referencing the source instead. If you also need to do that, start here for wpa_supplicant CLI and here for hostapd CLI.

Unfortunately, the bss_tm_req command is one of such not well documented commands. If you used the provided example configs and your simulated WiFi interface MAC addresses match, the provided bss_tm_req command should just work. If that's not the case, though, the following details some information on the format of the command.

bss_tm_req CLIENT_MAC pref=1 neighbor=BSSID,BSSID_INFO,OP_CLASS,CHANNEL,PHY_TYPE
